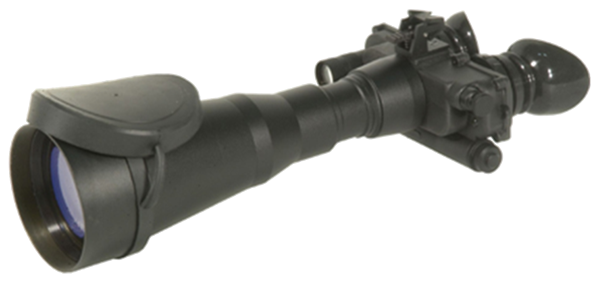

Night Vision Binocular (PNVB-03)

Specifications

OPTICS

Magnification

6.5x

Field of view

Min. 5°

Eye relief

15mm

Diopter adjustment

+2D TO -4D

Interpupillary distance

55 to 76mm

Focusing range

12m to ∞

PWR

Power source

Two AA batteries

Battery life

30 hours

PHYSICAL

Size

250x130x72mm

Weight

Less than 1.5 kg

Colour

Black

Image intensifier tube Generation 3 (USA)



Resolution

64 lp/mm

FOM

1400

Life of tube

10,000 hours

Cathode type

Gallium Arsenide

Detection with 6.5x OG

500m (Man), 600m (Vehicle)

Recognition with 6.5x OG

400m (Man), 500m (Vehicle)

Accessories



Hard carrying case (1)

Cleaning brush (1)

AA Rechargeable batteries (4)

Operating manual (1)

Battery charger (1)

Lens cleaning paper

Night Vision Monocular (SNVG-14, AN/PVS-14)

Specifications

OPTICS

Magnification

1x

Field of view

40°

Objective lens

27mm (1.1in)

Minimum focus distance

25cm (9.8in)

Eye relief

25mm (1in)

Diopter adjustment

+2 to -6

PWR

Power source

Single AA battery

Battery life

~40 hours @ Room Temp.

PHYSICAL

Size

11.4cm L x 5.1cm W x 5.7cm H

Weight

290g with battery (0.6lb)

Colour

Black

SNVG-14, AN/PVS-14 Options



SNVG-14, 1400FOM

SNVG-14, 1600FOM

SNVG-14, Non-FOM/AG

SNVG-14, COMM-DC

SNVG-14, COMM-AG



Accessories



SNVG-14 Monocular

Demist shield

Eye cup

Sacrificial shield

Lens tissue

Neck cord

Headmount

Soft carry case

Carrying strap

AA batteries

Operating manual

Lens cover

Night Vision Goggle (PNVG-03)

Specifications

OPTICS

Magnification

1x

Field of view

40°

Objective lens

26mm (1in)

Minimum focus distance

25cm (9.8in)

Eye relief

15mm (0.6in)

Diopter adjustment

+2 to -6

PWR

Power source

Two AA batteries

Battery life

~40 hours @ Room Temp.

PHYSICAL

Size

14.1cm L x 15.6cm W

Weight

650g with mask assembly (1.4lb)

Colour

Black

Accessories



SNVG-7 Goggle (1)

AA batteries (2)

Eye cups (2)

Sacrificial shield (1)

Lens tissue (1)

Neck cord (1)

Headmount (1)

Soft carry case (1)

Carrying strap (1)

Operating manual (1)

Day Night System (CLP-03)

Specifications

OPTICS

Magnification

1x

Field of view

13°

Focal length

55mm

Minimum focus distance

25m

PWR

Power source

1 CR123 lithium battery

Battery life

16 hours

PHYSICAL

Size

13.7 x 9.7 x 7.7 cm

Weight

771g with battery

Colour

Black or Taupe

Image intensifier tube Generation 3 (USA)



Resolution

64 lp/mm

FOM

1400

Life of tube

 10,000 hours

Cathode type

Gallium Arsenide

Detection range

 500m

Mount

Picatinny rail

Accessories



Hard carrying case (1)

Cleaning brush (1)

Rechargeable batteries (2)

Operating manual (1)

Battery charger (1)

Lens cleaning paper

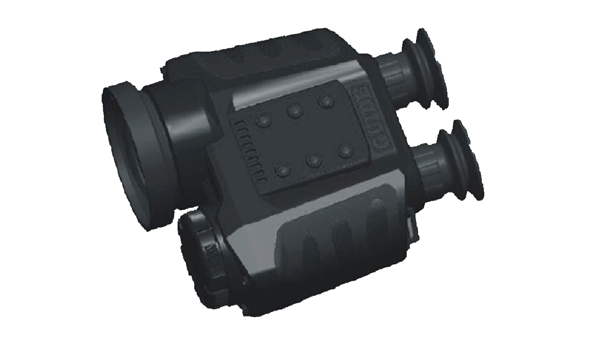

Handheld Thermal Binocular (HHTI)

Specifications

DETECTOR

Detector

Uncooled FPA, Amorphous Silicon

Spectral range

8~14 µm

Pitch

25 µm

Sensor resolution

384x288

Thermal resolution

≤80mk

OPTICS

Lens

61mm / F=0.8

Field of view

9° x 6.75°

PRESENTATION

Video output

PAL

Frame frequency

50Hz

Brightness / Contrast

Auto and Manual control

Polarity

B&W, B&W inverse

Electronic zoom

x2

Display

2xOLED view finders

STORAGE

Type

Fixed 4GB SD Card

File format

BMP

Video recording

Yes

POWER

Power supply

110-240VAC adapter

Battery operating time

3 hours continuous operation

INTERFACES

Command & control

RS 232/422

Video output

Analog composite video output

USB 2.0

Image and video transfer to PC

ENVIRONMENT

Operating temperature

-40°C to 60°C

Storage temperature

-50°C to 70°C

Humidity

Operating and storing 10% to 95%
non-condensing

Encapsulation

IP67

PHYSICAL

Size

196mm x 166mm x 63mm

Tripod mounting

1/4" - 20

Colour

Black

Weight

1.5kg (without batteries)

Lightweight Thermal Gunsight (720-LWTS)

Specifications



Detector type

VOx microbolometer

Array size

320x240 micron pitch

Detector pitch

25 micron pitch

Spectral response

8-12 µm



Thermal sensitivity

‹50mK

Startup time

4 secs

Range

550m

Field of view

18° x 13.5° / 9° x 6.75°

Digital zoom

2x

Output

LCD

Weight

 1.1kg

Image polarity

black hot / white hot

View finder display

 Greyscale

Power source

Four AA batteries

Reticle

 Mill dot

Accessories



Hard carrying case (1)

Cleaning brush (1)

AA Rechargeable batteries (4)

Operating manual (1)

Battery charger (1)

Mount

Lens cleaning paper

Soft case

Medium Range Thermal Gunsight (720-MR)

Specifications



Detector type

VOx microbolometer

Array size

320x240 micron pitch

Detector pitch

25 micron pitch

Spectral response

8-12 µm



Thermal sensitivity

‹50mK

Startup time

4 secs

Range

1900m

Field of view

7.1° x 5.3° / 3.5° x 2.7°

Digital zoom

2x

Output

LCD

Weight

 1.1kg

Image polarity

black hot / white hot

View finder display

 Greyscale

Power source

Four AA batteries

Reticle

 Mill dot

Accessories



Hard carrying case (1)

Cleaning brush (1)

AA Rechargeable batteries (4)

Operating manual (1)

Battery charger (1)

Mount

Lens cleaning paper

Soft case

Long Range Thermal Gunsight (720-LR)

Specifications



Detector type

VOx microbolometer

Array size

320x240 micron pitch

Detector pitch

25 micron pitch

Spectral response

8-12 µm



Thermal sensitivity

‹50mK

Startup time

4 secs

Range

2200m

Field of view

4.5° x 3.4° / 2.7° x 1.7°

Digital zoom

2x

Output

LCD

Weight

 1.4kg

Image polarity

black hot / white hot

View finder display

 Greyscale

Power source

Four AA batteries

Reticle

 Mill dot

Accessories



Hard carrying case (1)

Cleaning brush (1)

AA Rechargeable batteries (4)

Operating manual (1)

Battery charger (1)

Mount

Lens cleaning paper

Soft case

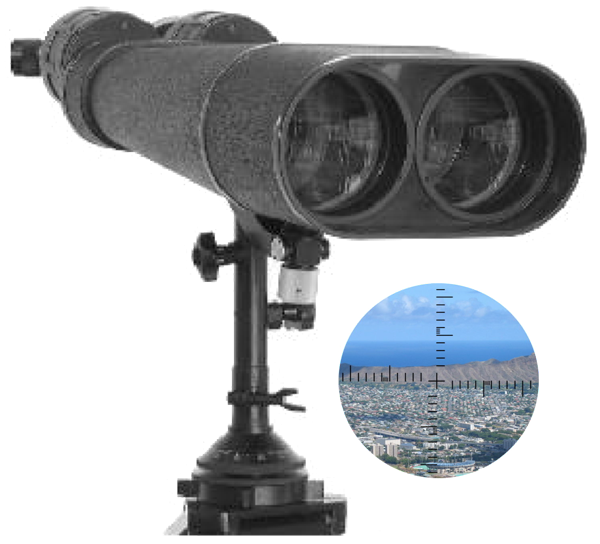

Long Range Binocular (LRB)

Specifications

OPTICS

Objective size

100mm

Magnification

25x and 40x

Ocular

Straight-through turrets

Reticule

Grid pattern is a series of short
horizontal and vertical lines

Prism

Bak-4

Optic coating

Broadband fully multi-coated

Field of view

25x-44m at 1000m (2.52°)
40x-26m at 1000m (1.5°)

Focus range

50m to ∞

Inter-pupil distance

58-80mm

N2 gas fill

Yes

MECHANICAL

Body

Rubberized, black

Body length

60cm

Net weight of body

13kg

Net weight of tripod

7kg

Tripod height

Adjustable 0.95-1.43m

Range

Unlimited

ENVIRONMENT

Operating temperature

-20°C to +50°C

Storage temperature

-20°C to +50°C

Humidity

80 - 90%

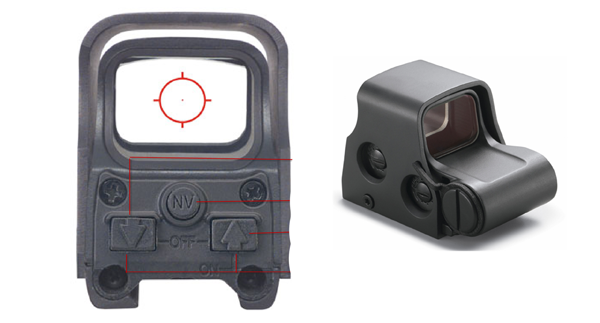

Holographic Sight (HOLO)

Specifications

OPTICS

Optics coating

Multi coated

Magnification

1x

FOV

Unlimited

Reticule

Red/Green with adjustable brightness control

Reticule brightness

10 brightness level red and green dot sight

Elevation and leverage adjustment

Provided on the side of the sight (zeroing facility)

MECHANICAL

Body

Aluminum

Mounting

Fits on any universal 20mm Picatinny rail

Weight

227g

Shock

Shockproof, withstands shock effect of firing

Range

Unlimited

POWER

Power supply

1xCR123A Li-batteries or 2xAA batteries

Power safe feature

Automatic power off in 2 hours

ENVIRONMENT

Operating temperature

-20°C to +50°C

Storage temperature

-20°C to +50°C

Humidity

80 - 90%

Dry Zeroing Device (ZD)

Specifications

OPTICS

Focus distance

200m

Lens aperture

35mm

Accuracy

Greater than 0.5m radius

Maximum deviation between optical axis and caliber spuds

±1 angle minutes

Maximum distance between optical axis and caliber spuds

42 or 68mm (depending on weapon type)

MECHANICAL

Overall dimensions

134 x 99 x 46mm

Weight

490g

Body material

Hard black anodized rigid aluminum

Caliber spuds material

Stainless steel

POWER

Power supply

2 x 1.5 Volts commercially
available batteries

ENVIRONMENT

Recommended
Operating temperature

-20°C to +55°C

Humidity

80 - 90%

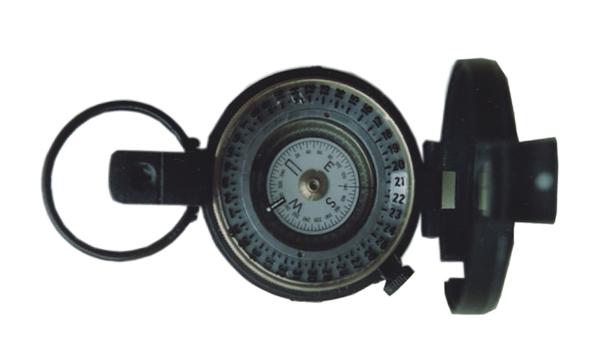

Marchers Prismatic Liquid-Filled Compass (MK-3A)

Specifications

OPTICS

Prism

Fine optical glass

Magnification

20x

Reading dial

Mills or degrees

Accuracy

1/4 degree

MECHANICAL

Construction

Non-magnetic material
to Indian standard

Liquid

Isopropyl Alcohol

Light source

Tritium self-luminous source or Promethium

Operating Temperature

-30°C to +52°C

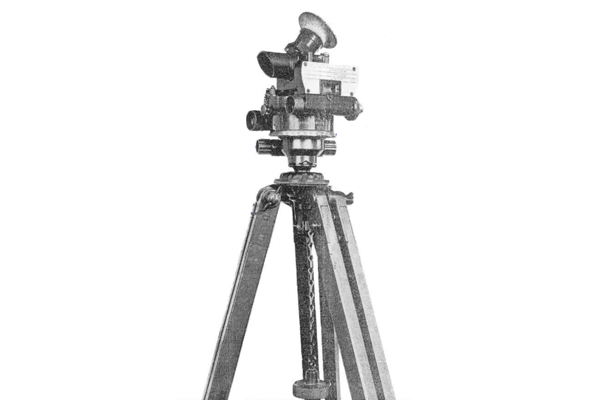

Director Fire Control No. 7 (MK-5)

Specifications

INFO

This device is used to measure azimuth
and elevation angles of a ground or
aerial target with respect to a
preselected base line.

GENERAL

Azimuth rotation

Unlimited

Elevation gear 15

65°

Depression (maximum)

15°

Telescope power

4 power

Field of view

12°
